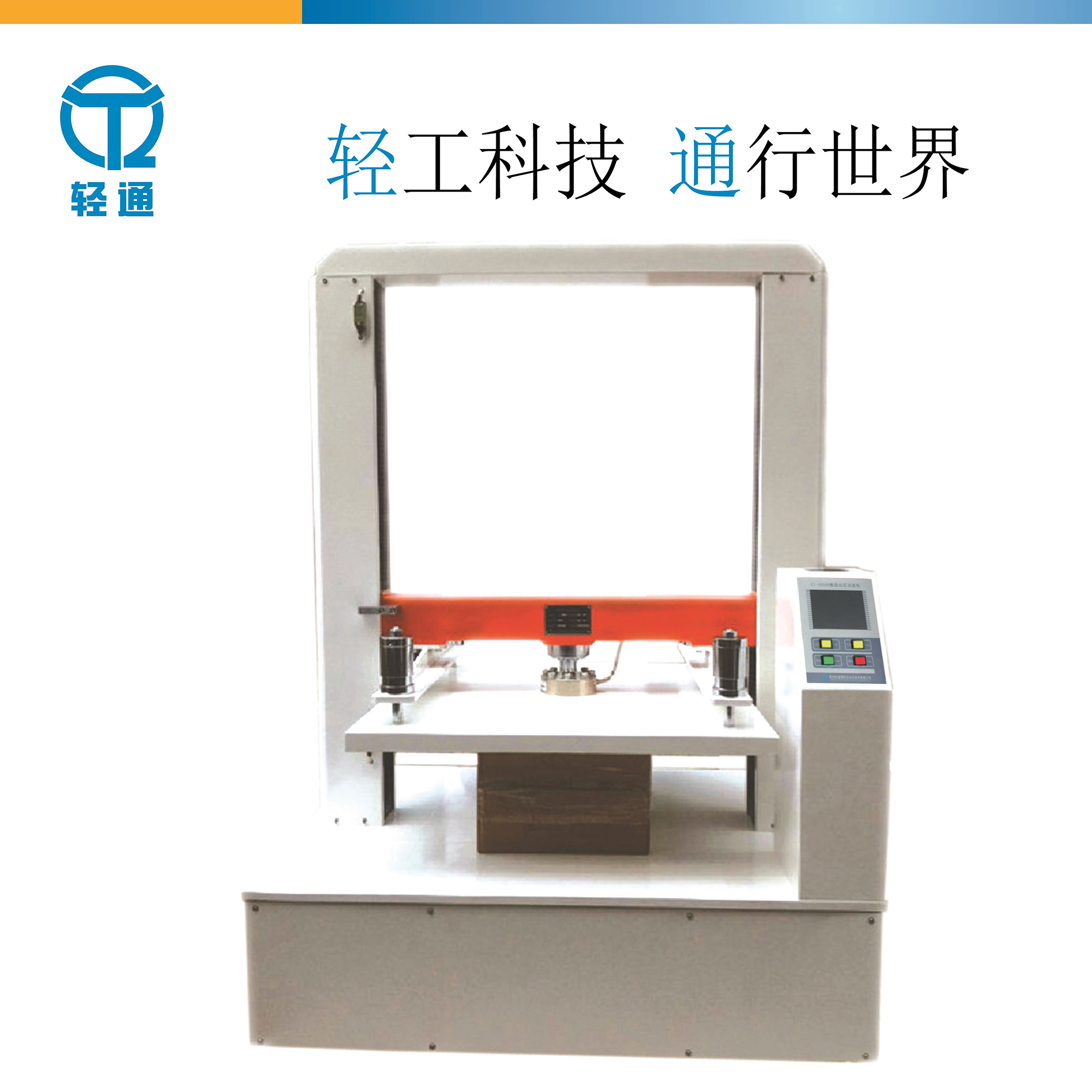

CT-5000B型 整箱抗压试验机

适用于大型工业纸管、中等瓦楞纸箱等包装容器

(抗压＜25KN)的整箱抗压强度测试与堆码强度试验。

Conducts compression and stacking tests

for large industrial paper tubes and medium corrugated cartons (＜25KN).

测量范围 Measurement Range: (0.25～25) kN
准确度 Accuracy: ±2%
压板尺寸 Platen Size: 1000x1000mm (customizable)
工作行程 Working Stroke: 1000mm
测量速度 Measurement Speed: (10±2.5) mm/min
回程速度 Return Speed: (5～120) mm/min (arbitrary setting available)

电源 Power Supply: AC220V±10％，50Hz
产品尺寸 Dimensions (L×W×H): 1350x950x1950mm
重量 Weight: 约 about 1000kg

室温 Room Temperature: (10～30)℃
相对湿度 Relative Humidity: ＜85％
环境要求 Environmental Requirements: 干净，清洁少尘、无强磁场、强震动源 Clean, less dust, no strong magnetic field or strong vibration source

稳定精准的机械架构：双丝杠双导柱结构搭配单高精度传感器（上压板安装），压缩速度 10mm/min、回程速度 120mm/min（可调），定位精准，确保抗压强度测试数据可靠。
Stable & Precise Mechanical Structure：Dual-screw dual-guide pillar structure with a single high-precision sensor (mounted on the upper pressure plate), compression speed of 10mm/min and return speed of 120mm/min (adjustable), ensuring precise positioning and reliable compressive strength test data.

多功能智能检测：支持箱体抗压强度测试、预置压力达标检测及 12/24 小时堆码试验，触摸屏实时显示测量曲线，可选配软件连接电脑拓展数据管理。
Multi-Functional Intelligent Testing：Supports box compressive strength testing, preset pressure compliance detection, and 12/24-hour stacking tests. The touchscreen displays real-time measurement curves, and optional software connects to computers for extended data management.

高效安全设计：具备自动复位、故障诊断功能，适配 1m×1m×1m 箱体试验，人机界面友好，全流程提升检测效率与设备运行安全性。
Efficient & Safe Design：With automatic reset and fault diagnosis functions, suitable for 1m×1m×1m box testing, and a user-friendly interface, it enhances testing efficiency and equipment safety throughout the process.
