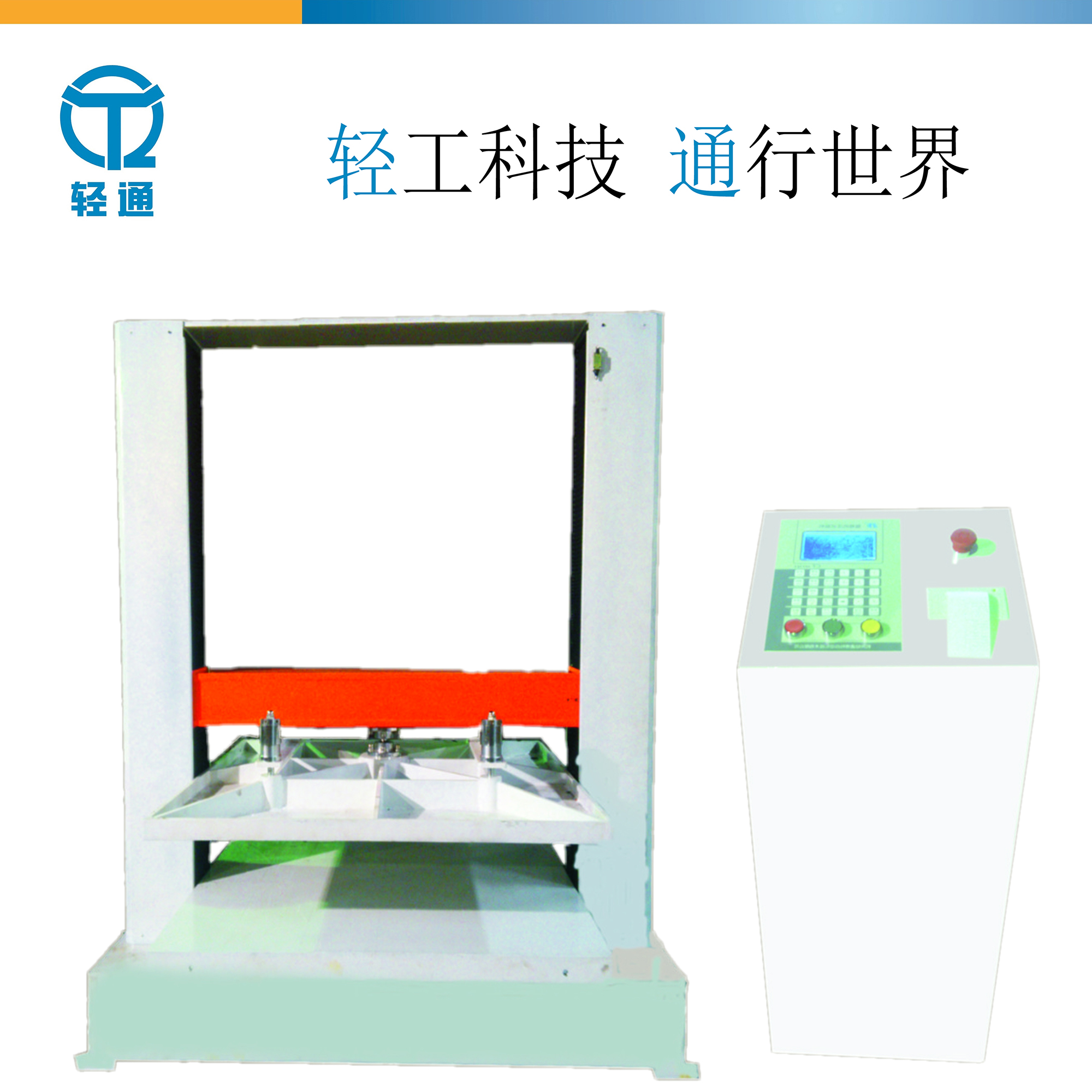

CT-5000E型 整箱抗压试验机

适用于瓦楞纸箱、木托盘、金属及塑料包装容器的

整体抗压强度检测，评估包装容器承压性能。

Measures overall compressive strength of corrugated cartons,

wooden pallets and metal/plastic packaging containers.

测量范围 Measurement Range: (0.5～100) kN
示值误差 Indication Error: ±1%
压板尺寸 Platen Size: 1500x1500mm
工作行程 Working Stroke: 1500mm
压板平行度 Platens Parallelism: <0mm
加压速度 Pressing Speed: (5～120) mm/min
回程速度 Return Speed: (5～120) mm/min

电源 Power Supply: AC 380V，5A，50Hz
产品尺寸 Dimensions (L×W×H): 2320x1500x2680mm
重量 Weight: 约 about 500kg

室温 Room Temperature: (10～30)℃
相对湿度 Relative Humidity: ＜85％
环境要求 Environmental Requirements: 清洁少尘、无强磁场、强震动源 Clean, less dust, free of strong magnetic fields and vibration sources

高精度动态监测：4 个高精度传感器（误差 ±1%）自动捕捉纸箱承压至溃缩力学变化，支持自定义测试速度与堆码压力，数据精准。
High-Precision Dynamic Monitoring：4 high-precision sensors (±1% error) automatically capture carton mechanical changes from loading to collapse. Customizable test speed and stacking pressure ensure accuracy.

智能安全管理：实时显示压力及曲线，自动生成报告，配备超压保护与急停功能，操作安全；适用大尺寸包装箱、木托盘抗弯等多元场景。
Intelligent Safety Management：Real-time pressure/curve display, automatic report generation, overpressure protection and emergency stop ensure safety. Fits large packaging, wooden pallet bending tests, etc.

坚固工业级设计：结构稳固，优化大负荷抗压 / 堆码测试，兼顾纸箱与木托盘检测，机械稳定性强，满足高强度工业需求。
Sturdy Industrial Design：Robust structure optimized for high-load compression/stacking tests, compatible with cartons and wooden pallets. Strong mechanical stability meets industrial demands.
