 您所在的位置:首页 >>> 产品展示 >>> WZL-C系列 卧式电脑拉力仪

产品展示

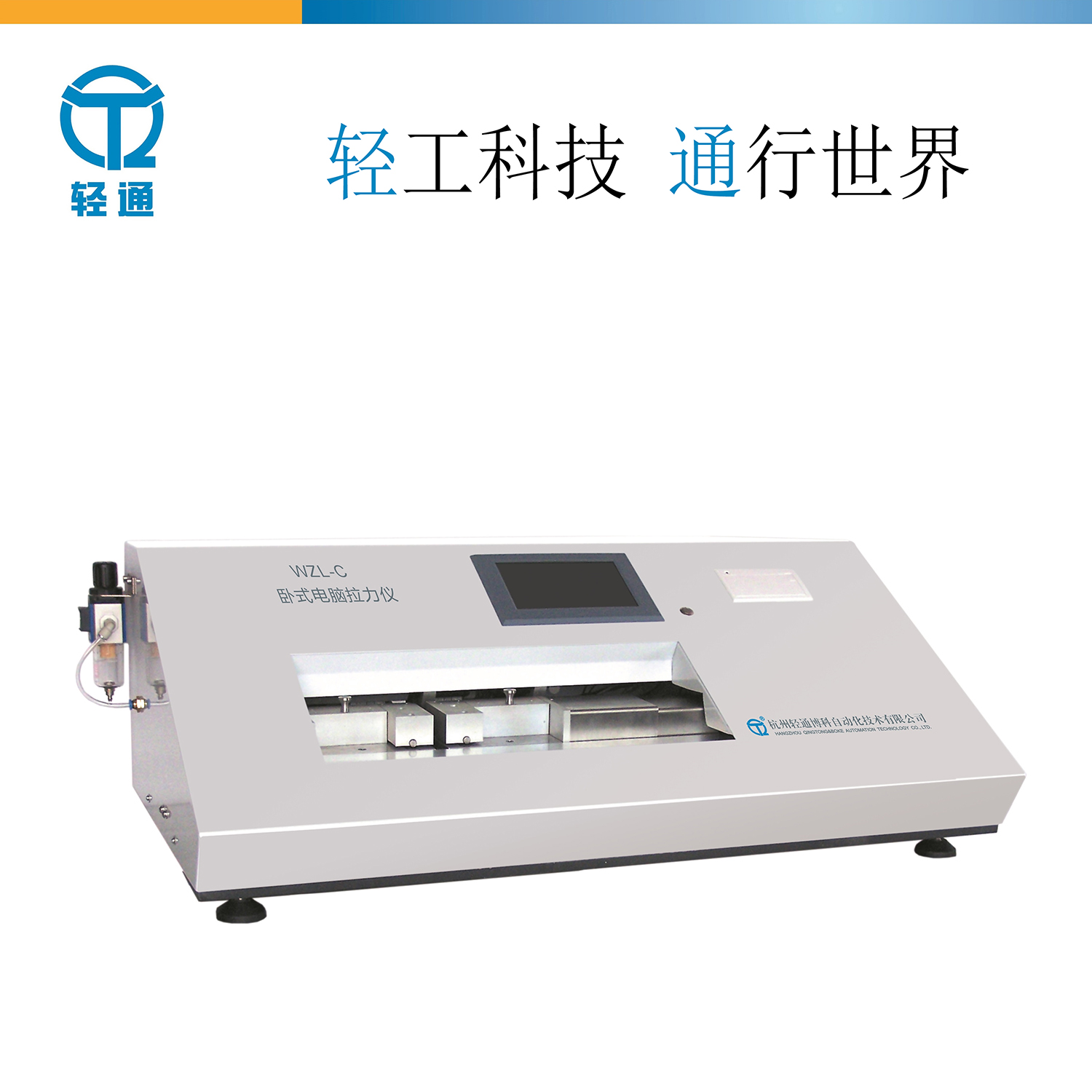

WZL-C系列 卧式电脑拉力仪
放大图片
产品名称:

WZL-C系列 卧式电脑拉力仪

产品型号: WZL-C
产品特点: WZL-C型卧式电脑拉力仪采用独特卧式设计和丝杆传动形式,触摸屏显示,采用精密电机控制技术,具有结构紧凑、功能齐全、操作方便的特点,主要功能如下: 测量纸张的抗张力、抗张强度、伸长率、裂断长、抗张能量吸收、抗张指数、抗张能量吸收指数。


适用于精准测量纸张抗张力、抗张强度、伸长率等多项力学性能指标,

为造纸、包装、质检及科研等领域提供材料强度评估数据。

Measures paper tensile properties (force, strength, elongation)

for strength evaluation in papermaking, packaging and QC.



测量范围 Measurement Range:3~300N;可定制 Customizable
准确度 Accuracy:±1%
拉伸速度 Tensile Speed:(0~200) mm/min 任意设置 Arbitrary setting
试样长度 Sample Length:(50~200) mm 可调 Adjustable
试样宽度 Sample Width:15mm、25mm、50mm 三档可调 Three adjustable levels
抗张力显示分度 Tensile Force Display Resolution:0.01N
伸长率显示分度 Elongation Display Resolution:0.01%
时间显示分度 Time Display Resolution:0.1S
通讯输出 Communication Output: 以太网口将数据传到 server 端 Ethernet port transmits data to server

电源 Power Supply:AC220V±10%,50Hz
外形尺寸 Dimensions (L×W×H): :720x380x280mm

重量 Weight: 约 50kg

室温 Room Temperature: (20~40)℃
相对湿度 Relative Humidity: <85%
环境要求 Environmental Requirements: 清洁,无强磁场和震动源clean, no strong magnetic fields or vibration sources



智控紧凑设计:采用卧式丝杆传动与精密电机控制,触摸屏实时显示数据,结构紧凑且操作便捷,兼具美观与功能性。
Intelligent Compact Design:Horizontal screw drive with precise motor control and touchscreen display ensures compact structure, convenient operation and aesthetic design.

高效自动化:气动自动夹持避免试样损伤,高速 ARM 处理器支持实时曲线采集与全自动测试流程,测量精准高效。
High-Efficiency Automation:Pneumatic clamping prevents sample damage, while high-speed ARM processor enables real-time curve recording and fully automated testing for precise results.

多元智能接口:配备 232 串口、网线、USB/SD 卡接口(默认 SD 卡),支持数据存储、远程访问及工业 4.0 智能管理,可自动生成报表。
Multi-Intelligent Interfaces:Equipped with 232 serial, network, USB/SD card (default SD) interfaces for data storage, remote access and Industry 4.0 management, supporting automatic report generation.





DJ-15型标准切纸刀 或 SP-300型 标准取样器;

空气压缩机;
