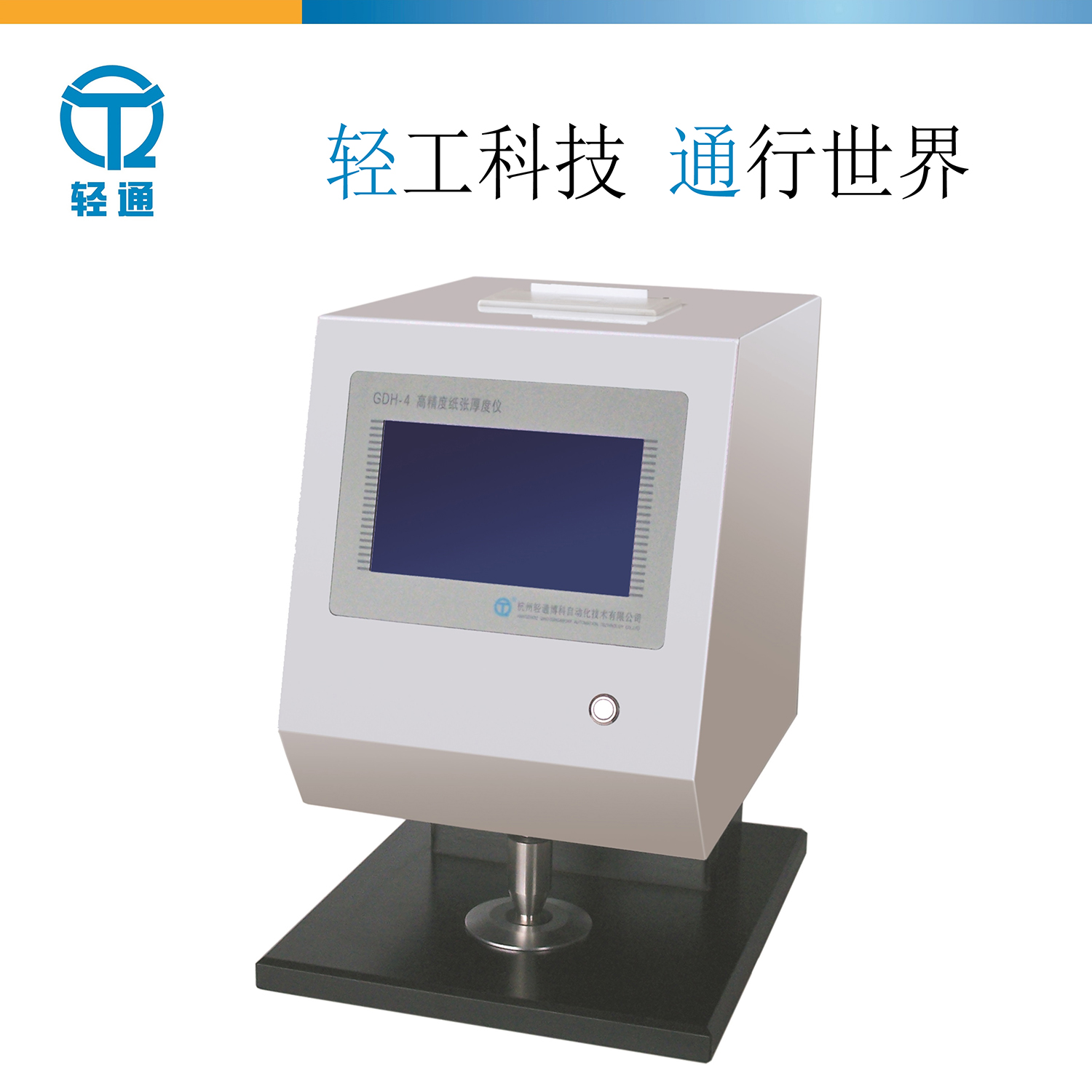

GDH-4型 高精度纸张厚度仪

适用于纸和纸板，可精准测定单层及多层厚度并自动计算结果，

用于各类纸张生产、质检中的厚度测试与质量评估。

Precisely measures single/multi-layer thickness of paper/paperboard,

auto-calculates results for production QC.

测量范围 Measurement Range: (0～4) mm
测量精度 Measurement Accuracy: 0.001mm
测量速度 Measurement Speed: 3mm/s
测量压力 Measurement Pressure: (100±10) kPa
测量面积 Measurement Area: (200±5) mm²
电机功率 Motor Power: 16W

电源 Power Supply: AC220V±10%，50HZ
产品尺寸 Dimensions (L×W×H): 340x280x430mm
重量 Weight: 约 about 32kg

室温 Room Temperature: (10～35)℃
相对湿度 Relative Humidity: ＜70％
环境要求 Environmental Requirements: 清洁，无强磁场和震动源 clean environment, free of strong magnetic fields and vibration sources

精准智能测控：采用高分辨率光栅测微传感器、倍频技术与 ARM 嵌入式平台，触摸屏控制，支持中英文，操作便捷。
Precise & Intelligent Measurement: Adopts high-resolution grating micrometer sensor, frequency doubling technology & ARM embedded platform, touchscreen control with Chinese-English support for easy operation.

丰富接口与数据管理：配备 232 串口、网线、USB、SD 卡接口，单机可设测试层数、自动统计数据，支持多端传输存储。
Rich Interfaces & Data Management: Equipped with RS232, network, USB & SD card interfaces. Single-machine supports test layer setting, automatic data statistics, and multi-terminal transmission/storage.

工业 4.0 智能协同：支持网线联主机（需配套系统），实现数据留存、查询、远程访问，电脑判质，提效降本。
Industry 4.0 Intelligent Collaboration: Supports network connection to host (with supporting system). Enables data retention, query, remote access, computer-aided quality judgment for efficiency & cost reduction.
