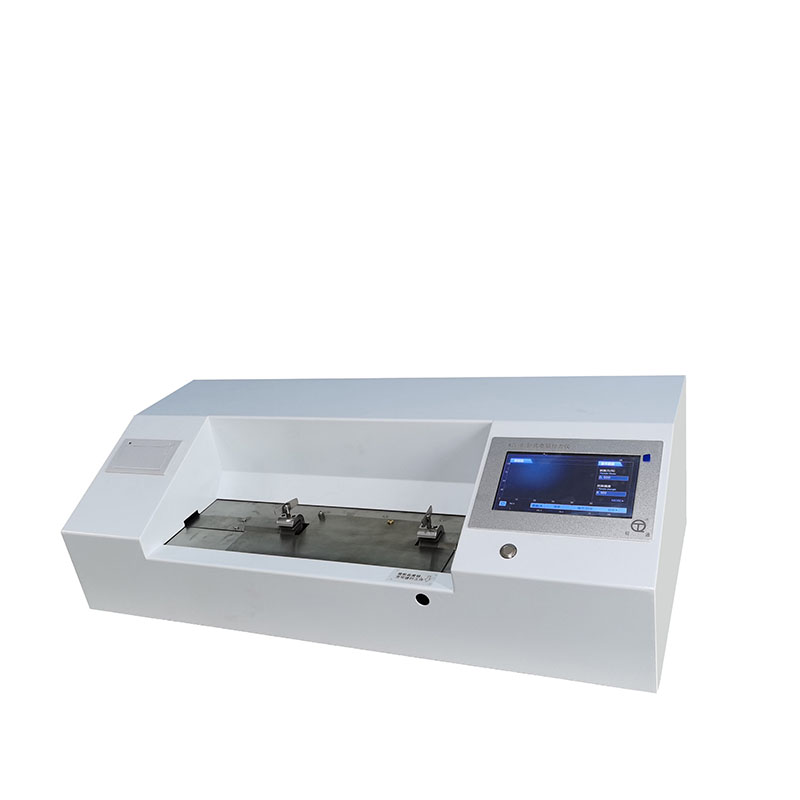

WZL-B系列 卧式电脑拉力仪

适用于测定纸张、纸板及包装材料的抗张力、抗张强度、

抗张指数、伸长率、裂断长、抗张能量吸收等力学性能。

Measures tensile properties (force, strength, elongation, etc.) of paper,

 paperboard and packaging materials.

测量范围 Measurement Range: (0.1～30) N/(1～100) N/(3～300) N/(5～500) N
测量精度 Measurement Accuracy: ±0.1%
测量速度 Measurement Speed: (5～400) mm/min
夹头间距 Chuck Spacing: 20-260mm (可调adjustable)
试样尺寸 Sample Size: 15mm、25mm、50mm

电源 Power Supply: AC220V±10%，50HZ
产品尺寸 Dimensions (L×W×H): 780x330x250mm
重量 Weight: 约 about 46kg

室温 Room Temperature: (20～40)℃
相对湿度 Relative Humidity: ＜85％
环境要求 Environmental Requirements: 清洁，无强磁场和震动源clean, no strong magnetic fields or vibration sources

高效精准测控：卧式结构实现 5-400mm/min 拉伸速度可调，高速返程功能提升测试效率；10-30N 量程精度达 0.01N，0.1-10N 达 0.001N，适配卫生纸参数测量。
High-efficiency Precision Measurement：Horizontal structure enables 5-400mm/min adjustable stretching speed and high-speed return for improved efficiency. Measurement accuracy reaches 0.01N in 10-30N range and 0.001N in 0.1-10N range, suitable for toilet paper parameter testing.

智能数据处理：搭载高速 CPU 芯片，自动完成测量、统计、打印及数据保存；中英文切换触摸屏操作界面，搭配热敏打印技术，无油墨设计，低故障且维护便捷。
Intelligent Data Processing：Equipped with high-speed CPU chip, auto-completes measurement, statistics, printing, and data storage. Chinese-English switchable touchscreen interface combined with thermal printing ensures inkless operation, low failure rate, and easy maintenance.

灵活多功能设计：机电一体化紧凑机身，既专注纸张测量，又可通过配置调整适配多材料检测；计算机通信接口支持数据互联，满足多样化测试需求。
Flexible Multi-functional Design：Mechatronic compact body focuses on paper measurement while adapting to multi-material testing via configuration adjustment. Computer communication interface enables data connectivity to meet diverse testing requirements.

（选配）DJ-15型 标准切纸刀或SP-300型标准取样器；
