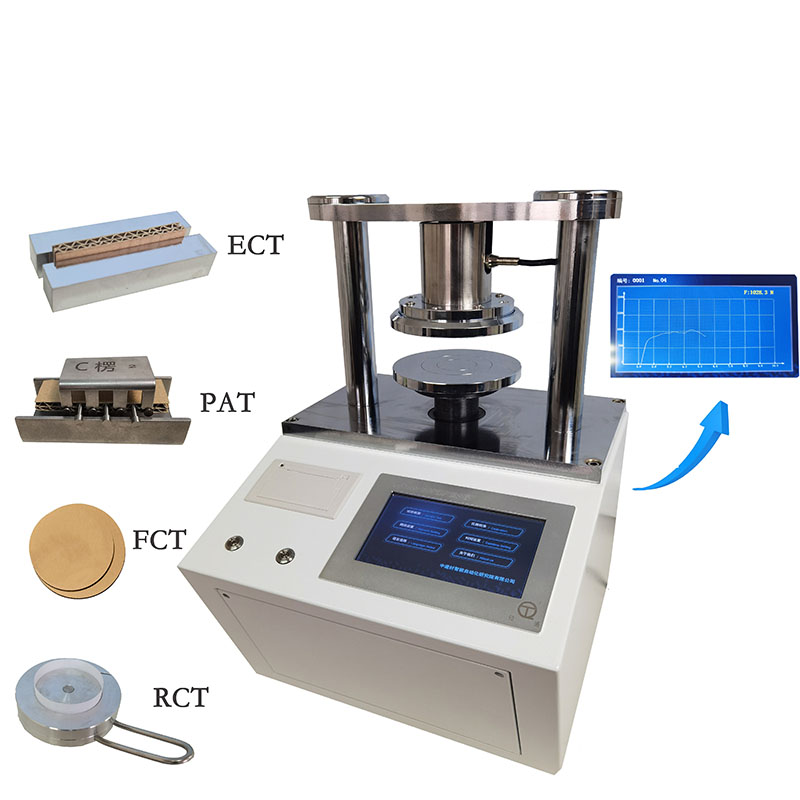

CT-300A型 压缩强度测试仪
放大图片
产品名称:

CT-300A型 压缩强度测试仪

产品型号: CT-300A
产品特点: CT-300A压缩强度测试仪适用于厚度为0.15~1.00mm纸和纸板环压强度、瓦楞纸板边压强度、瓦楞纸板平压强度、瓦楞纸板粘合强度及直径小于70mm的纸管抗压强度(0~3000N)测定。




适用于测定纸、纸板的环压强度,瓦楞纸板边压、平压、粘合强度。

Tests RCT of paper/board, ECT/FCT/PAT of corrugated board.



测量范围 Measurement Range: (60~3000) N
准确度 Accuracy: ±1%
测量速度 Measurement Speed: (12.5±2.5) mm/min
回程速度 Return Speed: 60mm/min
压板间距 Platen Spacing: (1~69) mm

电源 Power Supply: AC220V±10%,50Hz
产品尺寸 Dimensions (L×W×H): 400x400x600mm
重量 Weight: 约 about 60kg

室温 Room Temperature: 23±2℃
相对湿度 Relative Humidity: 50%±10% RH
环境要求 Environmental Requirements: 干净,避免环境干扰 Clean, avoid environmental interference



多功能集成检测:主机搭配可定制附件,通过高精度压力传感器,覆盖环压、边压、平压、剥离强度等多类型测试,适配原纸及瓦楞纸板全场景强度检测。
Multi-Functional Integrated TestingThe main unit with customizable accessories, combined with high-precision pressure sensors, covers ring crush, edge crush, flat crush, and peel strength tests, adapting to full-scenario strength detection of base paper and corrugated board.

智能高效运行:微电脑控制实现压板高速自动返程,触摸显示屏支持中英双语切换,热敏打印机低噪高效输出数据,全流程提升检测效率。
Intelligent & Efficient OperationMicrocomputer control enables high-speed automatic return of the pressure plate. The touchscreen supports Chinese-English bilingual switching, and the thermal printer outputs data with low noise and high efficiency, enhancing testing efficiency throughout the process.

安全稳定可靠:配备限位、超量程、电机堵转等多重保护机制,结合触摸操作引导界面,保障人机安全,确保长期稳定运行。
Safe & Stable ReliabilityEquipped with multiple protection mechanisms (limit protection, overload protection, motor stall protection, etc.) and a touch-operated guidance interface, it ensures safety for users and equipment, guaranteeing long-term stable operation.



SP-152型 环压取样器;(测纸张环压强度客户必备)

CB-25型 边压(粘合)试样取样器;(测瓦楞纸板边压强度、粘合强度客户必备)

RC-13型 环压试验中心盘:(测纸张环压强度客户必备)

FQ-AC型 剥离试验架;(测瓦楞纸板粘合强度客户必备)

PY645/322型 平压取样器;(测瓦楞纸板。蜂窝纸板平压强度客户必备)
