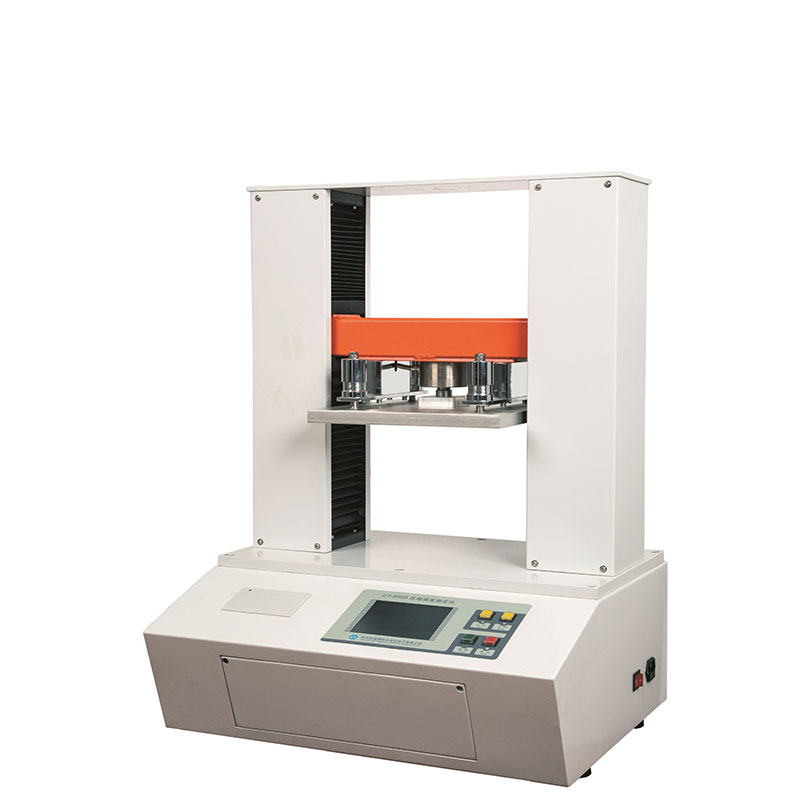

CT-500D型 压缩强度测试仪

适用于纸管、纸杯、纸碗、小纸盒等产品耐压强度测定。

Measures compressive strength of paper tubes, cups, bowls and small boxes.

最大量程 Max Range: 10kN
压板尺寸 Platen Size: 300x300mm
压板间距 Platen Spacing: (10～320) mm
压缩速度 Compression Speed: (10～65) mm/min
移动速度 Moving Speed: (10～65) mm/min
测试精度 Test Accuracy: ±1%

电源 Power Supply: AC220V±10％，50Hz
产品尺寸 Dimensions (L×W×H): 600x650x860mm
重量 Weight: 约 about 107kg

室温 Room Temperature: (15～40)℃
相对湿度 Relative Humidity: ＜85％
环境要求 Environmental Requirements: 干净，避免干扰 Clean, avoid interference

高精度稳定性能：机电一体化结合人机工程设计，上压板固定结构搭配大量程传感器与高速 CPU 芯片，测量精准且温度稳定性佳，结果可靠。
High-Precision Stable Performance：Mechatronic design with ergonomic principles, fixed upper pressure plate structure, large-range sensor and high-speed CPU chip ensure accurate measurement, excellent temperature stability and reliable results.

智能高效操作：触摸屏支持中英双语，可灵活调节压板间距，自动完成测试、统计及打印，流程快捷流畅。
Intelligent & Efficient Operation：Touchscreen with Chinese-English bilingual support allows flexible adjustment of pressure plate spacing. Automatic testing, statistics and printing ensure smooth and fast workflow.

安全防护设计：配备过压保护、超行程限位双重机制，测试后压板高速自动返程，微型打印机清晰输出，兼顾效率与操作安全。
Safety Protection Design：Dual protection mechanisms (overpressure protection and over-travel limit) ensure safety, while high-speed automatic pressure plate return after testing and clear micro-printer output balance efficiency and operational security.
